Aluminium Bi-Folding Doors

Individually created for your home

Let in the light and bring style to your home with Harmony’s Bifold Doors

Our bespoke aluminium bi folding door range offers a focal point to any room, bringing the outside in and flooding your home with natural light.

Open up your entertainment space and let the sunlight in, be at one with house and garden visually and provide a stunning environment in which to work, rest and play.
‍
With a smooth transition, you can create a new living space which seamlessly joins your outdoor and indoor living areas, making the most of space and views.
‍
Safety and comfort in your home is paramount, especially with children around. Harmony’s range of tailored aluminium bifold doors are beautiful, versatile and practical in design, but with all the security features your family needs.

Our Products include:

Features include:

Finger safe gaskets to prevent trapping
Special threshold designs for easy disabled access
Strong magnets to hold the doors in place to prevent them from slamming.

Benefits:

Your Home in harmony with your Garden
Flood your home with natural light
Secure and strong
A perfect family environment
Full range of colour and accessory options
Thermal performance Exceed all U Value requirements set by building regulations
Seamless transition with fingertip pressure only
Low recessed threshold and track system to deliver a virtual flush finish

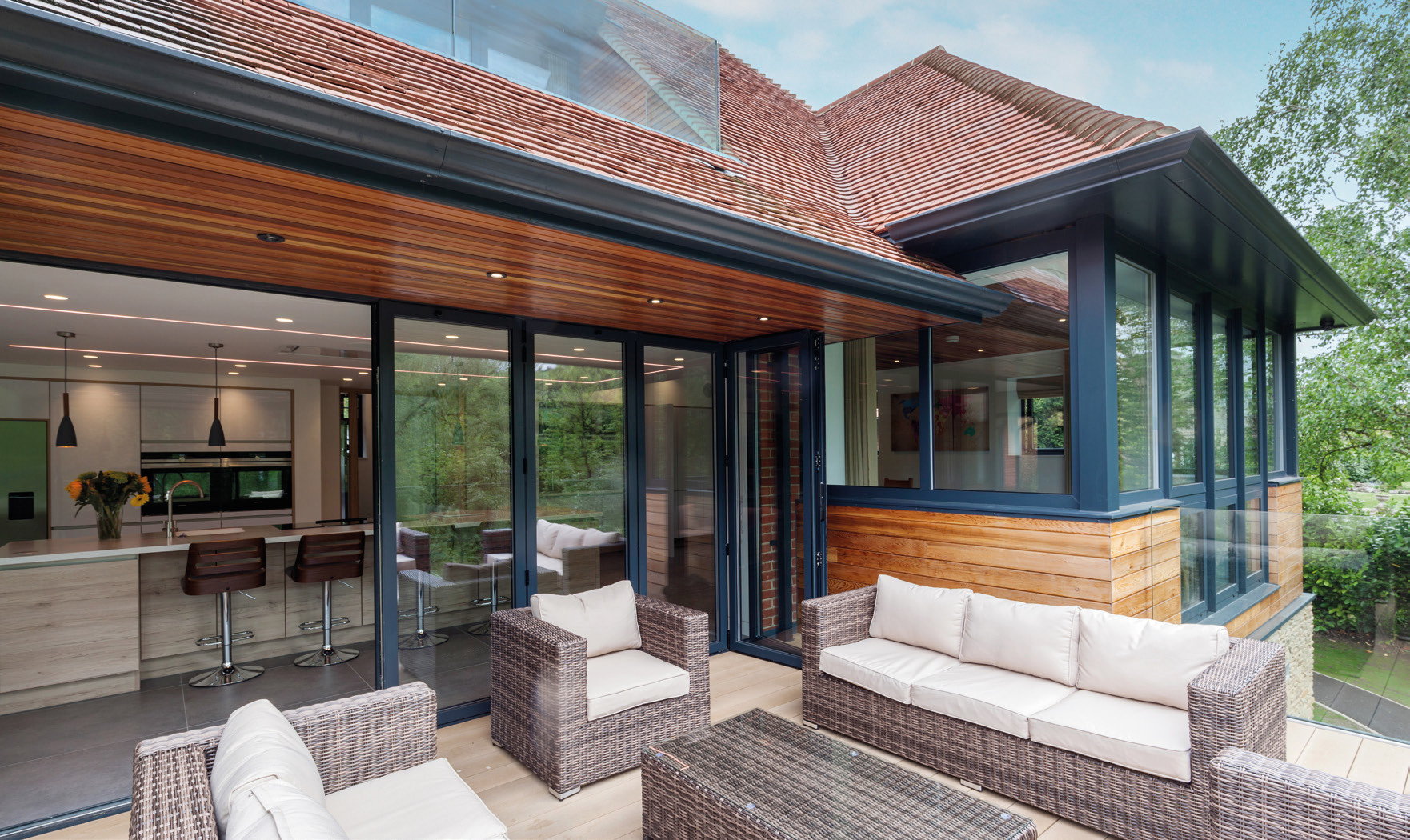

Visofold: Slide Folding Doors

Visofold can be used in domestic applications as either an alternative to sliding doors, or to open up an entire wall as part of a conservatory; the system will make the most of a beautiful view or bring a garden into the home.

Used commercially in a bar, café or restaurant, Visofold can create a glazed screen that allows in the maximum ingress of light in inclement weather, and will also easily glide to open up an entire wall in warmer weather.

Visofold doors offer a choice of opening configurations to suit any application. Choose to fold the sashes internally or externally, place the opening at the side so the sashes all fold one way, at one end, to create a single entrance door for easy access, or in the middle to give the option of a double door.

All Visofold profiles feature a polyamide thermal break that enhances the thermal performance of the profile and improves the overall U-Value. Profiles feature EPDM high quality gaskets and weather brushes to aid weather resistance. Visofold complies with the requirements of Building Regulations Document L 2010. Security is assured by multi-point lock mechanisms on main opening sashes, and shoot-bolt locking on floating mullions.

All Visofold doors have the option of either low thresholds for unimpeded, easy access, or rebated thresholds that offer improved weather resistance. Visofold doors are available in a choice of standard or non-standard colours, including metallic, wood-structure, dual colour and Smart’s unique Sensations range of textured finishes.

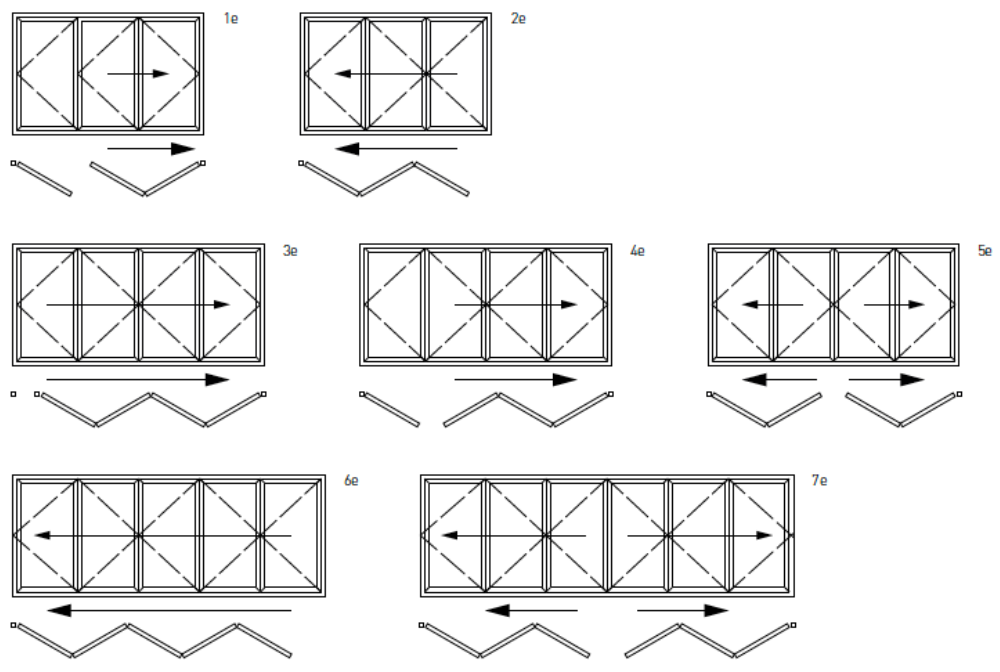

Configurations

A selection of configurations available, there are many more that our sales team will be happy to discuss with you.

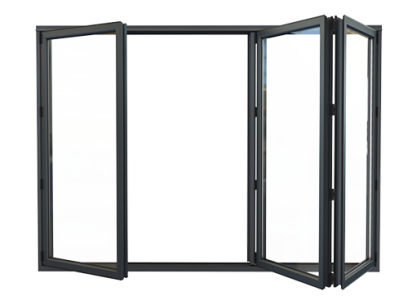

Visofold 1000

Application

Residential/retail/commercial

Features

Attractive, slim-line profiles offer reduced sightlines
Profiles available in either square or rounded edge options
Fabricated using mitred corners
Lock mechanism available with domestic style ‘lift-up’ handle and an adjustable, one-piece keep
Manufactured using Smarts punch tooling

Dimensions

Frame Width 102.5mm
Frame Depth 70mm
Glass 24, 28, 32, 34 or 36mm double or triple glazed units
Max o/a Height: 2500mm (per sash)
Max o/a Width: 1200mm (per sash)
Max Sash Weight: 100kg

Specifications

Finish: Single or dual colour, marine
Quality: polyester powder coat as standard **
U Value: 1.5 W/mÇK using a 1.0 centre pane
Air: Class 4, 600Pa
Water: Class E, 750Pa
Wind: Class 4, 1800Pa
Document L Compliant
PAS 24:2016: Enhanced Security Performance

High Performance

Successfully tested to PAS 24:2016 Enhanced Security Performance.
3 adjustable hinges and resistant to 80kg of pressure per hinge.
66mm triple glazed and PAS24 security laminated glass units.
All profiles include a polyamide thermal barrier that enhances thermal performance.
Thermally efficient glass - with a glass centre pane ‘U’ value from 0.9 W/m2K to 1.1W/m2K, dependant on the glass specified.
Double-rebated EPDM centre gaskets to provide enhanced weather protection.
Panel polyester powder coated to Qualicoat and EN 12206-1 standards.
